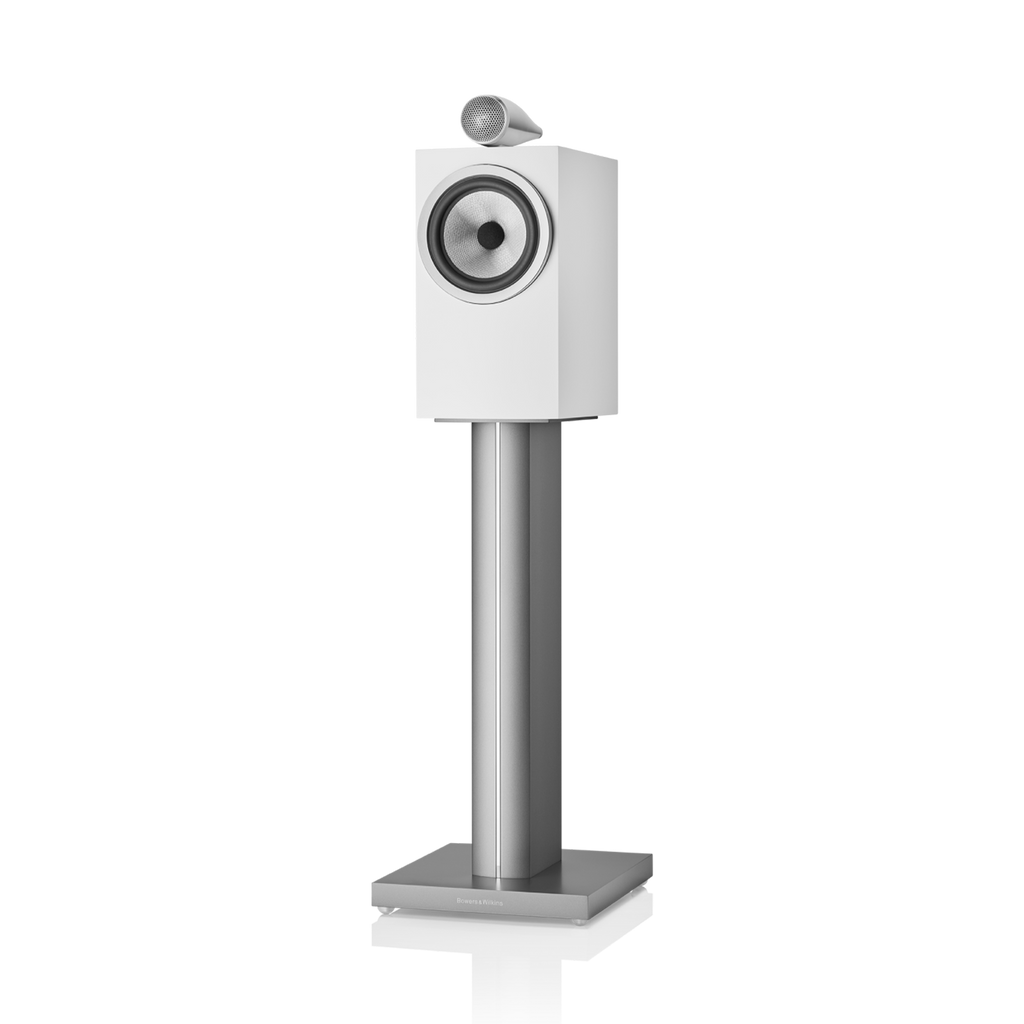

705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver. * Stand(s) not included.
![]() |
A house for high
|
Sharper detailCarbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail. |
![]() |
![]() |
Truly amazing soundThanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency. |
Size & weight | |
Net weight | 9.58kg (21.1 lb) |
Dimensions | Height: 345mm (13.6 in) cabinet only 413mm (16.3 in) including tweeter Width: 192mm (7.6 in) cabinet only Depth: 297mm (11.7 in) cabinet only 337mm (13.3 in) including grille and terminals |
Technical Details | |
Drive units | 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø165mm (6.5 in) Continuum cone bass / midrange |
Frequency range | 45Hz and 33kHz |
Frequency response | 50Hz - 28kHz ±3dB |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 150Hz - 20kHz |
Nominal impedance | 8Ω (minimum 3.7Ω) |
Recommended amplifier power | 30W - 120W into 8Ω on unclipped programme |
Sensitivity | 88dB spl (2.83Vrms, 1m) |
Technical features | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum™ cone bass / midrange Flowport™ |
Description | 2-way vented-box system Max recommended cable impedance 0.1Ω |
Finishes | |
Cabinet finishes | Gloss Black Satin White Mocha |
Grille finishes | Black Grey (Satin White only) |
