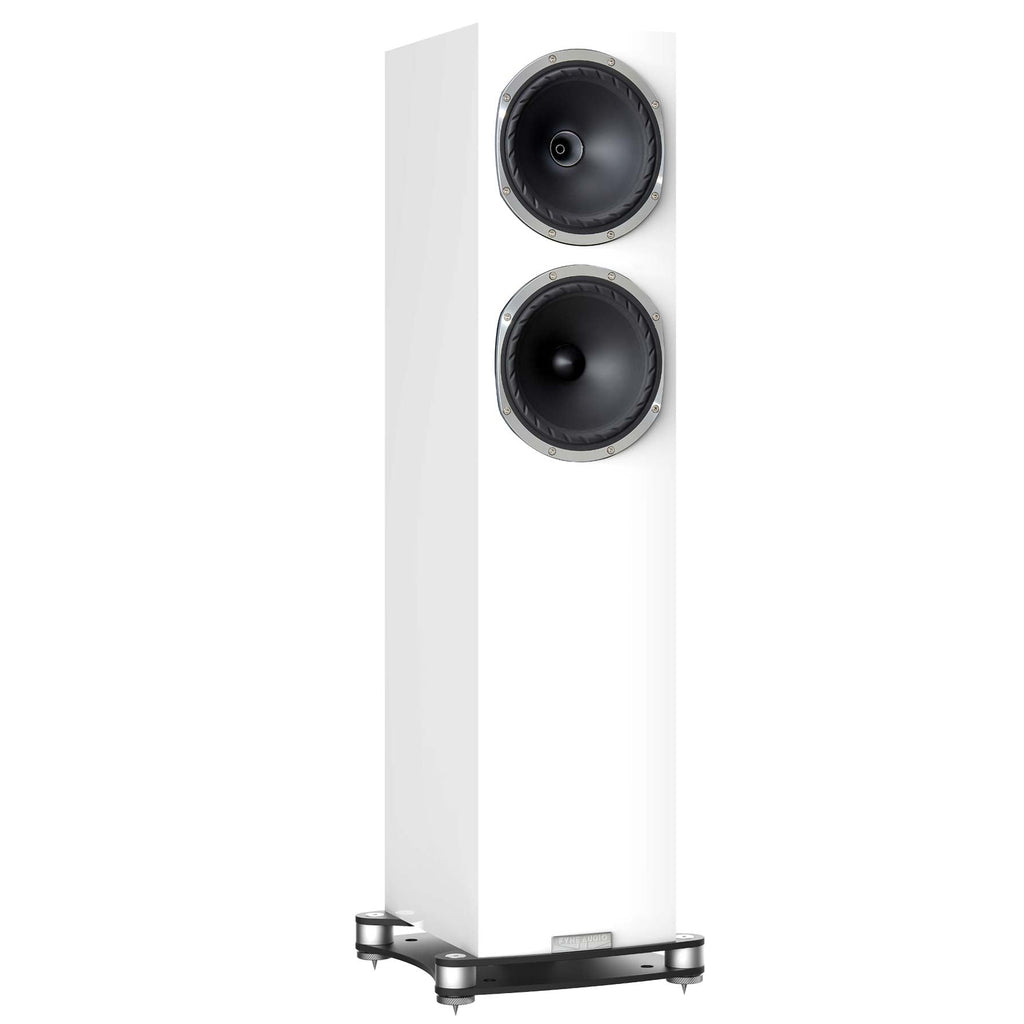

Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding Hi-Fi musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The SP is available in high-gloss black and high gloss white as standard, or a luxurious deep gloss lacquered walnut veneer with a diamond machine cut finish on the aluminium driver chassis.
| System Type | 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system |
| Recommended amplifier power (Watt RMS) | 30- 200 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 92dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 30Hz - 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround. |
| Crossover frequency | 250Hz & 1.7kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. |
| Dimensions - HxWxD | 1111 x 338 x 380mm (43.7 x 13.3 x 15.0”) |
| Weight - Each | 30.4kg (67.0lb) |
| Finishes | Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
|
Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. |
|
