    Lumin AMP Class A/B Stereo

    R 299,900.00
    FREE SHIPPING Ask about this product

      Lumin AMP Class A/B Stereo

       CHECK INSTORE FOR AVAILABILITY

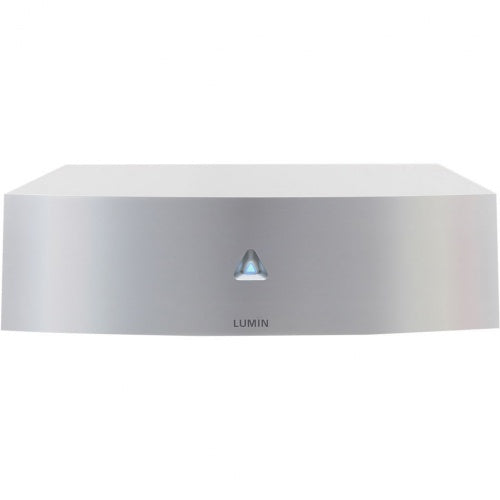

       LUMIN AMP

      Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.

      Matched styling.
      Unmatched performance.
      • Multi-Stage transistors amplifier
      • Dual Mono power supply and amplifier design
      • Fully discrete voltage and current gain stages
      • DC-coupled signal path
      • Class AB operation
      • High input impedence and sensitivty for direct DAC drive
      • Intelligent bias and thermal management
      • Stereo / Dual Mono / Bridged operation
      • CNC single billet aluminium construction
      • 600VA custom toroidal transformer
      • Built-in overload, overheat and DC protection




      		 True Dual Mono design throughout
      Keeping the design Dual Mono all the way from the power supply delivers full power simultaneously from both channels and keeps crosstalk to an absolute minumum.

      In LUMIN Amp, each channel is a mirror image of the other.



      Discrete Transistors
      Fully discrete voltage and current gain operating in class AB to deliver the finest details with the lowest distortion from your music.
      Custom low-noise toroidal power supply
      LUMIN Amp features a unique completely separate dual mono power supply design.

      The ultra low noise design features advanced voltage regulation circuitry.


        LUMIN AMP SPECIFICATION:



        OPERATING MODE: (selectable)
        Stereo, Dual Mono or Bridged mode
        INPUT: (selectable)
        1 x XLR pair (pin 2 hot), 1 x RCA pair
        POWER: 160W per channel into 8Ω
        320W per channel into 4Ω
        640W into 8Ω (Bridged)



        POWER SUPPLY:

        		 Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz

        POWER CONSUMPTION:

        		 Standby <0.5W
        Idle 40W
        Max 700W

        FREQUENCY RESPONSE:

        		 20hz - 40000hz ± 0.1db

        SIGNAL TO NOISE RATIO:

        		 103db, unweighted
        INPUT IMPEDANCE: 200kΩ Balanced (XLR)
        100kΩ Unbalanced (RCA)
        OUTPUT IMPEDANCE: 0.1Ω
        INPUT SENSITIVITY: 1.16Vrms
        GAIN: +26dB (Stereo, Dual Mono)
        +32dB (Bridged)

        PROTECTION:

        		 DC, overload and overheating protection

        FINISHES:

        		 Black anodized brushed aluminium or Raw brushed aluminium

        CONSTRUCTION:

        		 CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate

        DIMENSIONS:

        		 350mm (W), 374mm (D), 104mm (H)

        WEIGHT:

        		 19kg
