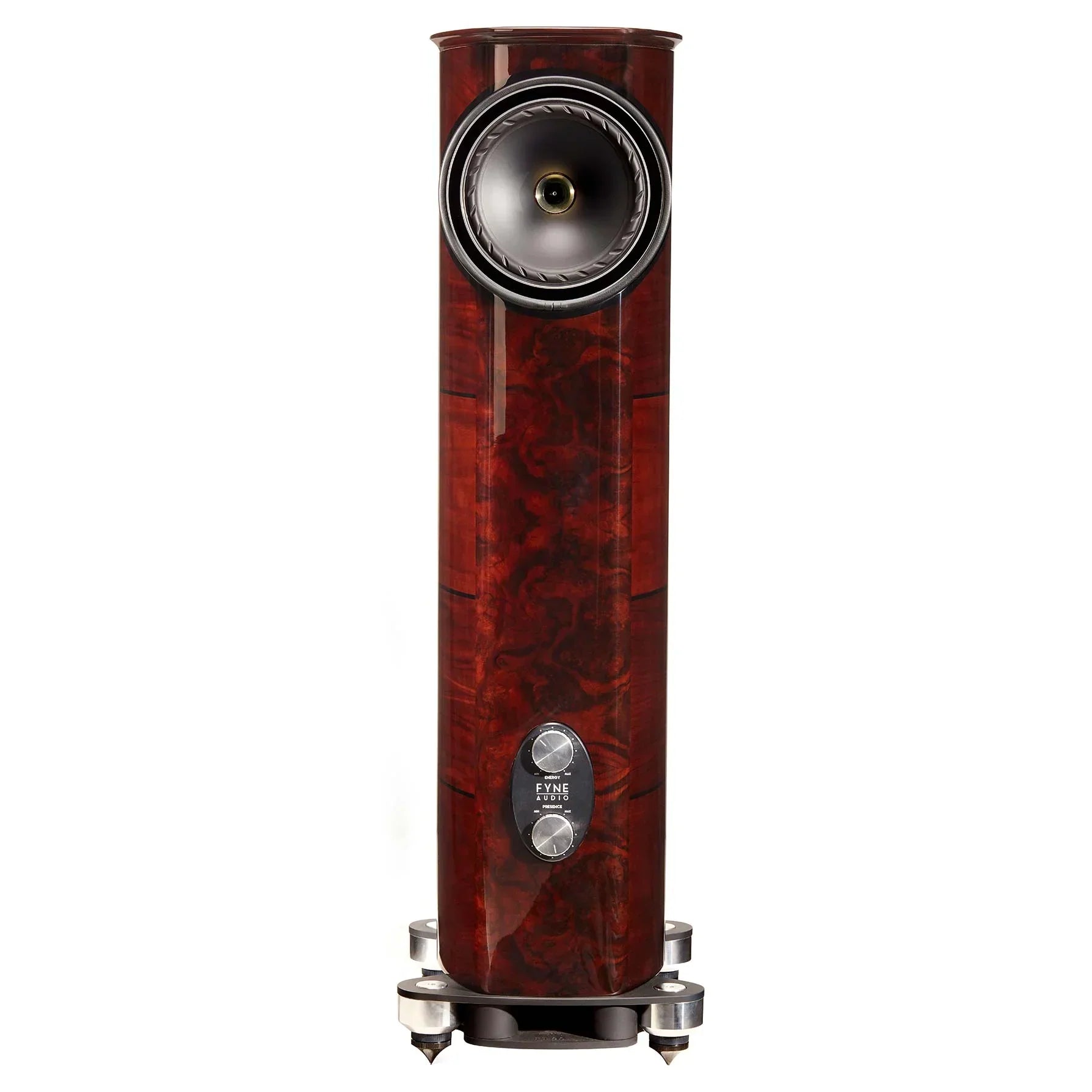

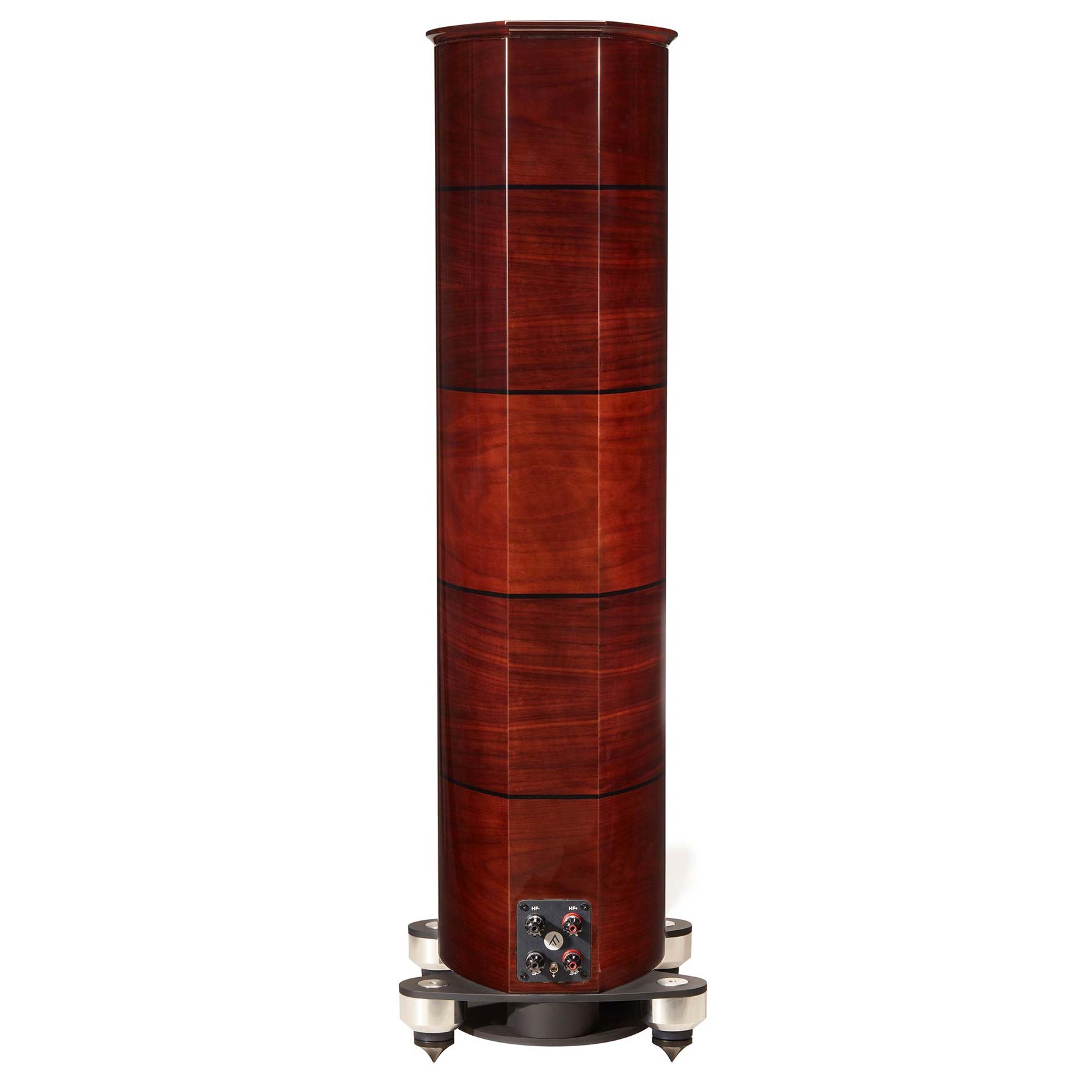

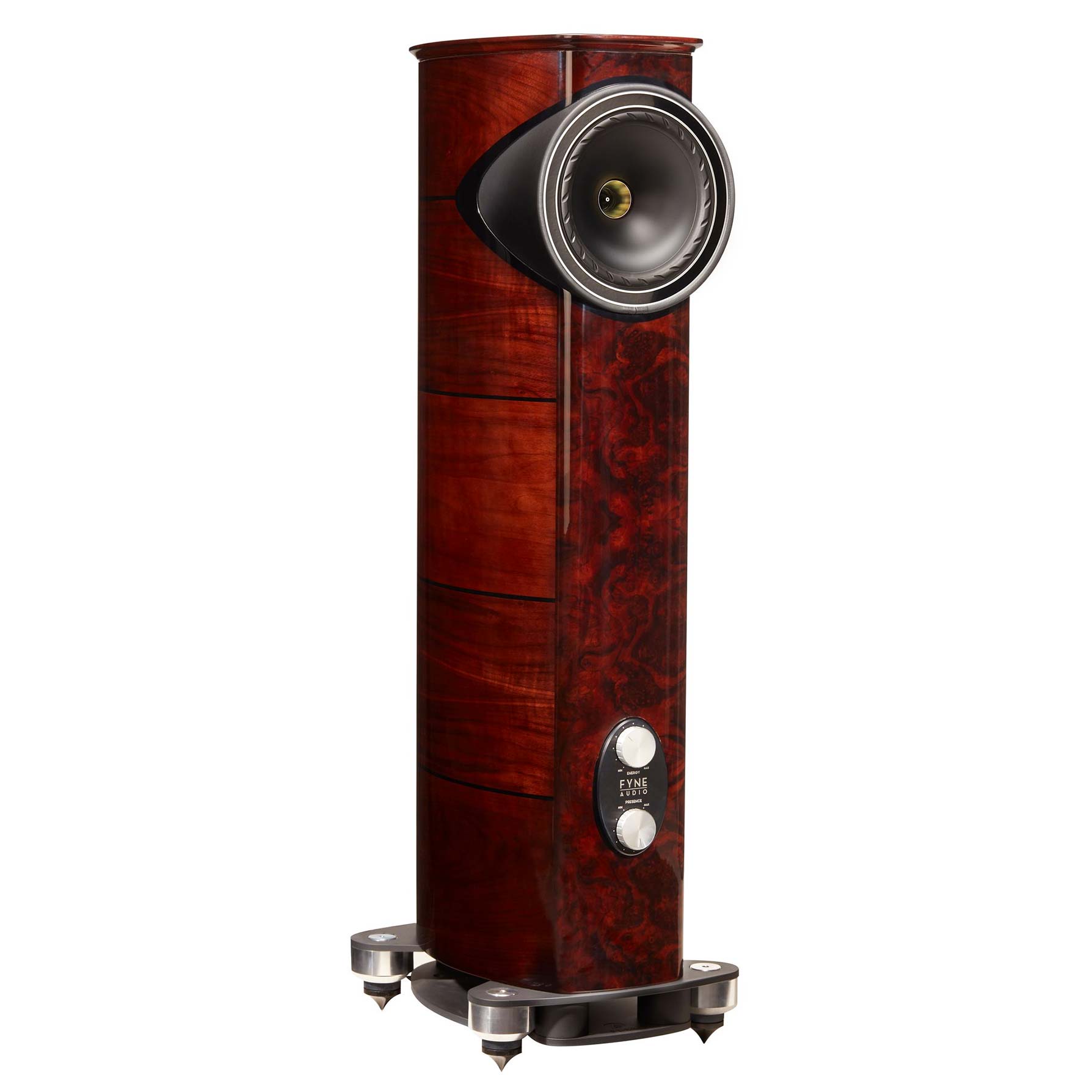

Dr Paul Mills and his development team have distilled Fyne Audio’s 8” driver and a bespoke crossover design into its most luxurious cabinet yet to meet the demand for the smaller listening room. Combined with the twin cavity BassTrax ported cabinet, the F1-8S produces an enhanced bass reaching down to 30Hz. Featuring a 25mm magnesium dome compression tweeter, the 8” IsoFlare driver offers a seamless, time aligned HF response to over 34kHz for ultimate realism and listener engagement. The F1-8S’s high sensitivity (91dB/W) ensures exceptional dynamic range and compatibility with the widest range of amplifiers from single ended triode valve models to the highest power solid state designs. The BassTrax porting and high quality potentiometer controls for HF energy and presence ensure the F1-8S will deliver optimum performance irrespective of room size or placement. Designed, hand crafted and hand finished at Fyne Audio’s UK manufacturing facility the sumptuous lacquered burr walnut finish of the F1-8S offers a bold statement in loudspeaker design for the audiophile with limited space.
| System Type | 2 way, downwards firing port, with BassTrax Tractrix diffuser |
| Recommended amplifier power (Watt RMS) | 20 - 200 |
| Peak power handling (Watt) | 400 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 30Hz - 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare point source driver with FyneFlute surround, multi-fibre bass / midrange cone, with 25mm magnesium alloy dome compression tweeter, neodymium magnet system |
| Crossover frequency | 1.8kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass, Deep Cryogenically Treated |
| System adjustments | High frequency energy (1.8kHz - 34kHz) +/- 3dB Presence (2.5kHz - 5.0kHz) +/- 3dB |
| Dimensions - HxWxD | 1086 x 335 x 445mm (42.8 x 13.2 x 17.5”) |
| Weight - Each | 30.0kg (66.0lbs) |
| Finishes | Piano Gloss Walnut |
|
Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. |
|
