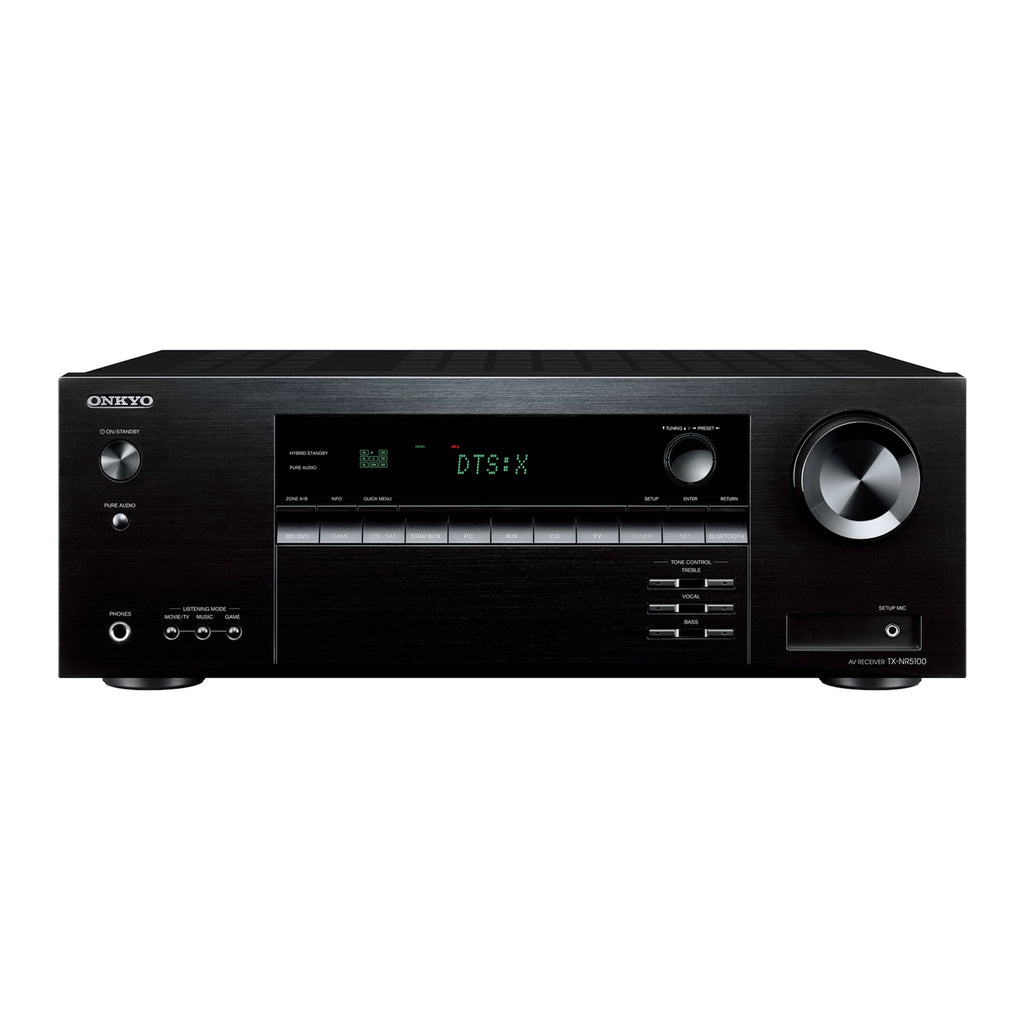

Smart Home Compatible with Voice ControlThe Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.* *Requires third-party AI compatible smart home device with microphone |
|
|
HDMI® 2.1 with 8KHDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road. |
Ultimate 4K Gaming Experience4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. |
Amplifier Section | |
Power output (All channels) | 165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
Dynamic power | 160 W (3 ohms, Front) 125 W (4 ohms, Front) 85 W (8 ohms, Front) |
THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz,) |
Input sensitivity and impedance | 200 mV rms/32 k-ohms (Line) |
Rated RCA output level and impedance | 200 mV rms/2.2 k-ohms (Zone B line-out) |
Frequency response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
Signal-to-noise ratio | 106 dB (Line, IHF-A) |
Speaker impedance | 4–16 ohms |
Tuner Section | |
Tuning frequency range | FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz |
FM/AM preset memory | 40 stations |
General | |
Power supply | AC 120 V~, 60 Hz |
Power consumption (operating) | 490 W |
Power consumption (idle) | 45 W |
Power consumption (standby) | 0.1 W |
Dimensions (W x H x D) | 17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm) |
Weight | 18.5 lbs. (8.4 kg) |
Shipping Dimensions (W x H x D) | 20 11/16˝ x 9 7/16˝ x 15 15/16˝ (525 x 240 x 405 mm) |
Shipping Weight | 23.1lbs. (10.5 kg) |
Supplied Accessories | • Indoor FM antenna • AM loop antenna • Speaker setup microphone • Quick Start Guide • Remote controller • AAA (R03) batteries x 2 |
