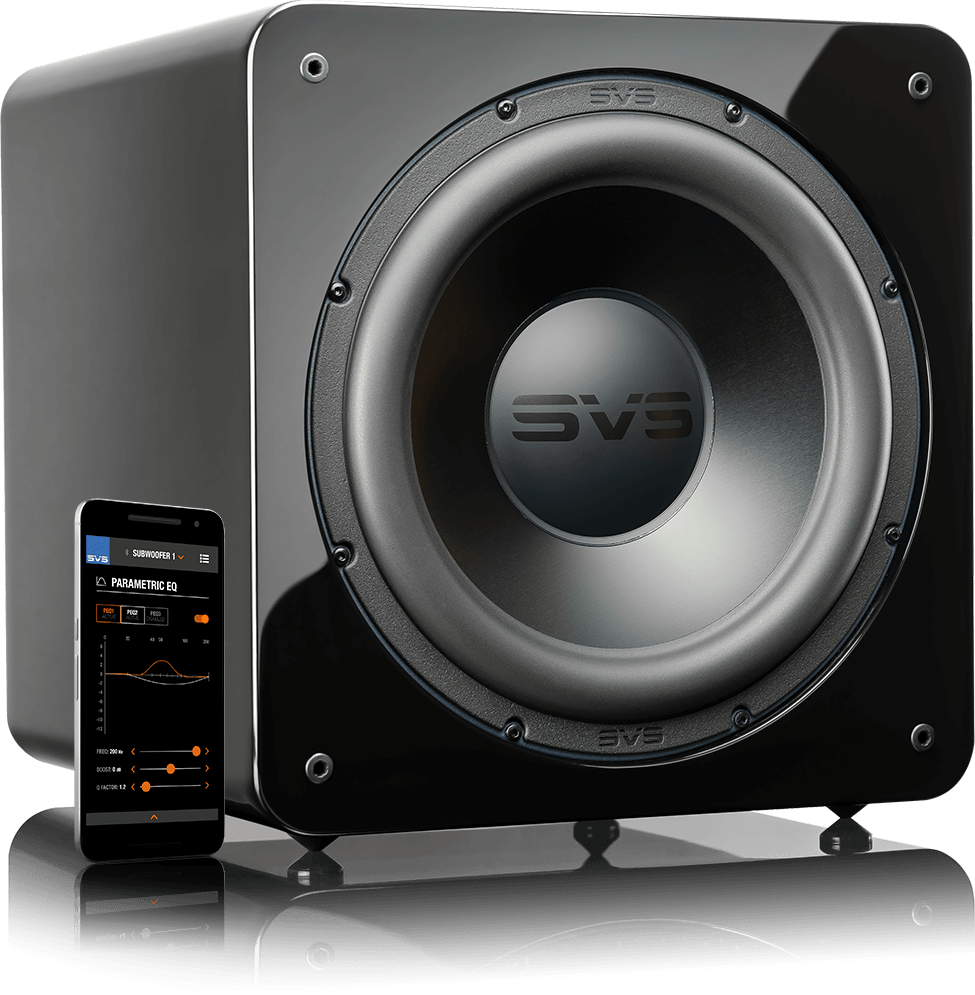

SVS SB-2000 Pro Subwoofer
Room-filling output and extension below 20 Hz with audiophile refinement. Brings reference subwoofer performance to more people than ever.
Room-filling output and low frequency extension below 20 Hz with audiophile refinement and musicality, SB-2000 Pro brings reference subwoofer performance to more people than ever from a compact cabinet measuring only 15-inches on all sides. Features all-new 12-inch high-excursion SVS driver and a Sledge STA-550D amplifier with fully discrete MOSFET output. Harnessing the massive power while ensuring unerring control and room-energizing bass response is a 50 MHz Analog Devices Audio DSP. SB-2000 Pro also features the SVS subwoofer smartphone app for convenient control of volume, DSP functions, custom presets and more.
Specifications:
| Frequency Response / Acoustic Data |
|
|
- 2-meter ground plane away from reflective structures (quasi-anechoic)
|
| Subwoofer Specs: |
|

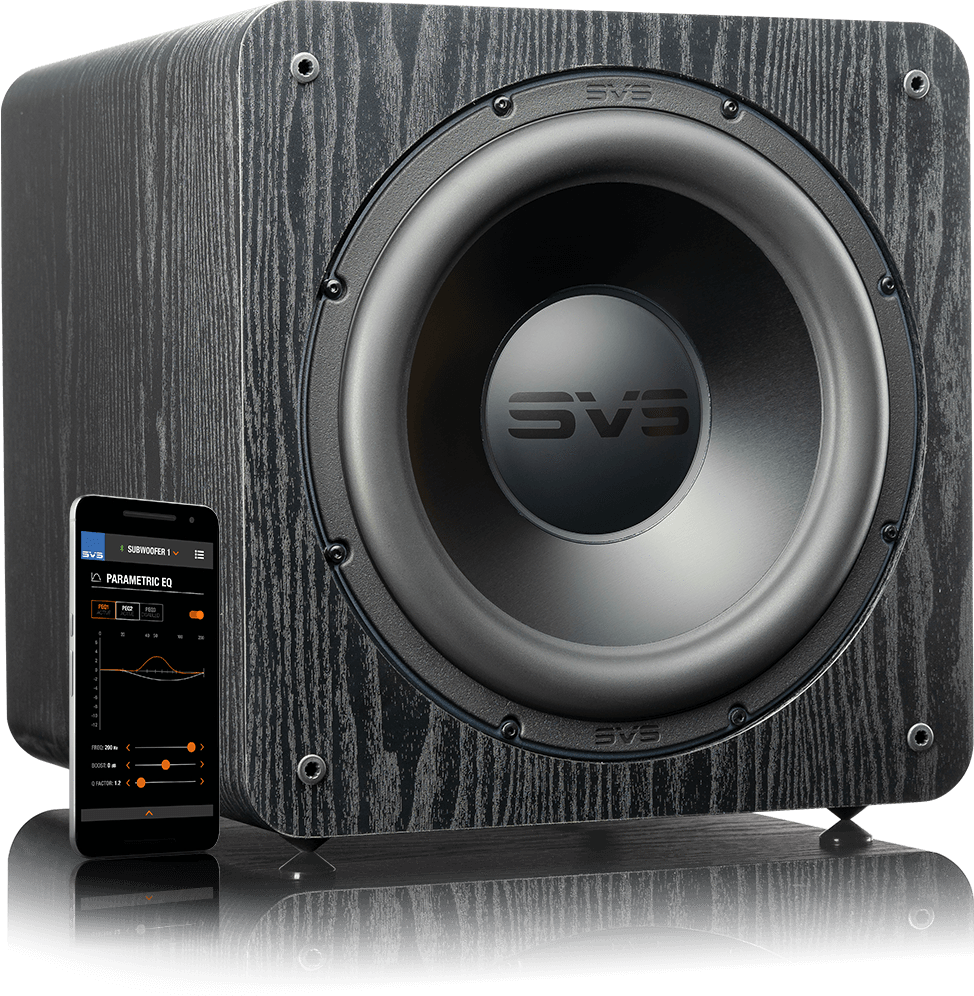

- Premium black ash finish.
- Front-firing 10” driver.
- Front-firing 3.5" high-flow port with inner/outer port flares.

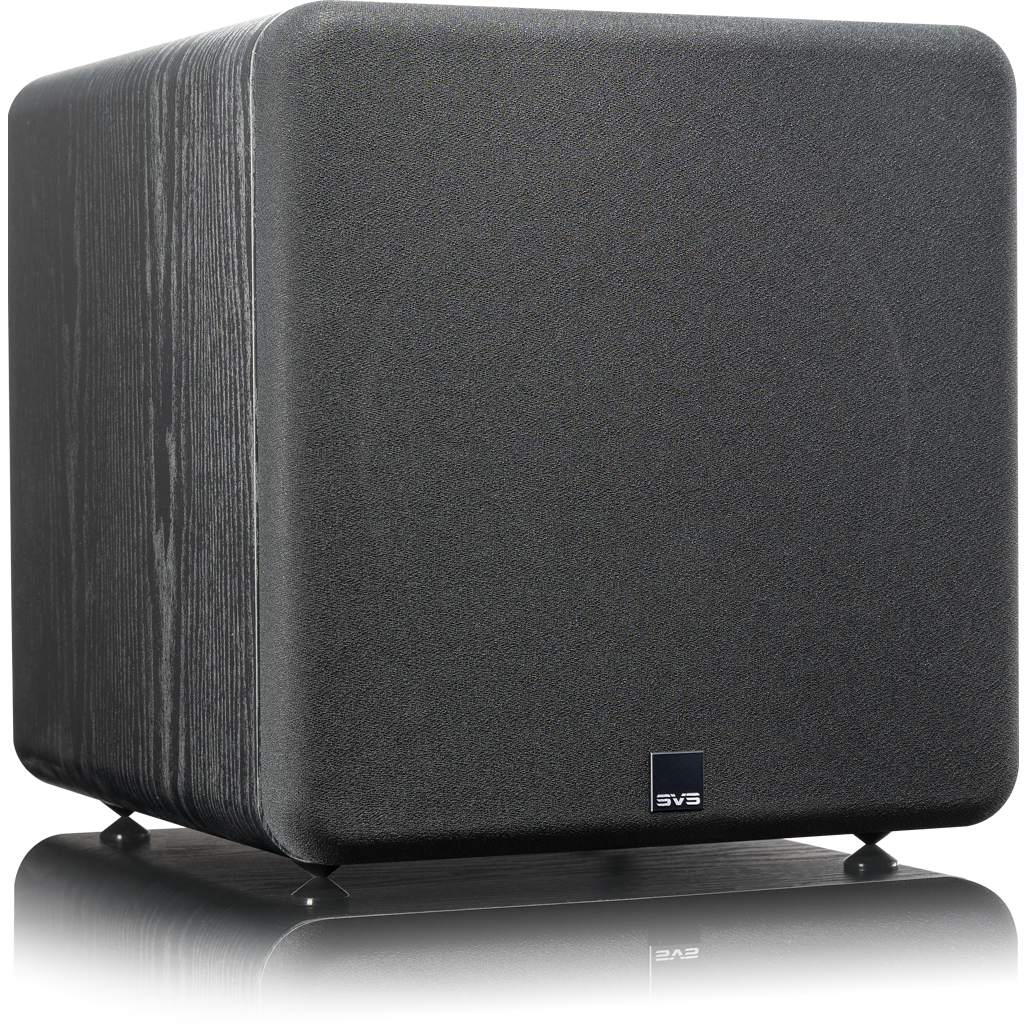

- Cloth grille with pin/cup retention system
- Rigid and strong cabinet construction.
- Detachable power cord.
|
- Cabinet Dimensions: 18.9" (H) x 15" (W) x 19.4" (D) (without grille).
- Overall Dimensions: 18.9" (H) x 15" (W) x 20" (D) (with grille).
- Weight (unboxed): 46 pounds.
- Shipped Dimensions: 24" (H) x 24" (W) x 20" (D).
- Shipped Weight: 60 pounds
|

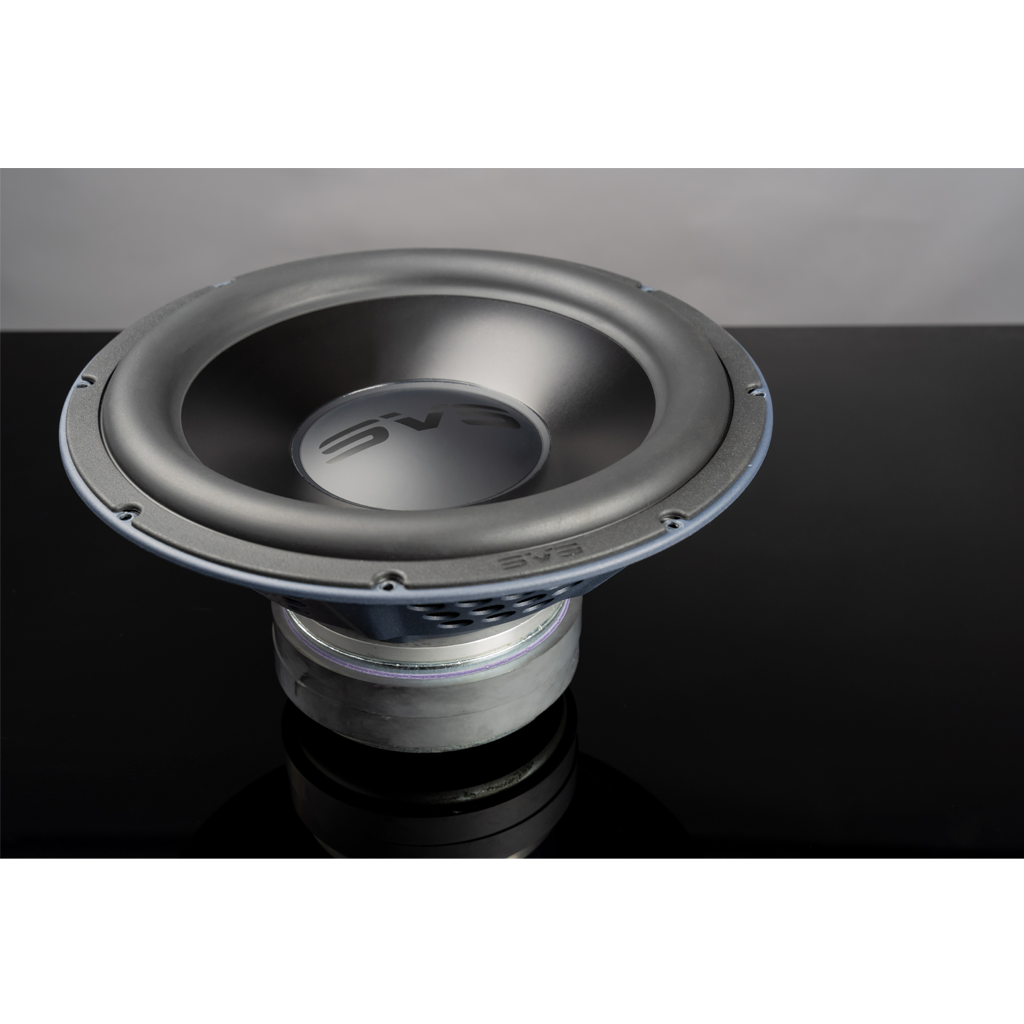

| Driver Specs: |
|
|
SVS 10" high-performance driver.
FEA-optimized motor technology for low distortion.
High-power voice coil for excellent thermal management.
Long-throw suspension for high output at deep frequencies.
|
Lightweight Treated Fiber Composite cone for enhanced sensitivity and transient response.
Rubber surround for durability and long-life.
Dual high-grade ferrite magnets.
Vented pole piece for greater cooling and low noise.
|
|
Amplifier Specs:
|
|
|
- Sledge STA-300D with 300 watts RMS continuous power (720 watts peak dynamic power).
- Efficient and cool-running Class D topology.
- 300 watts (720 watts peak dynamic).
- Green standby mode with less than 0.5 watts consumption.
- Detachable power cord with main power switch.
- RoHS compliant, lead-free construction and world-wide safety certifications.
Auto-On / On switch.
|
- DSP control for accurate response and refined behavior under all operating conditions.
- Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections.
- Stereo speaker level 5-way binding post input connections.
- Continuously variable low pass filter frequency with disable/LFE setting.
- Continuously variable volume and phase controls.
- Input impedance - 47 kΩ (unbalanced RCA) / 2 kΩ (speaker level)
|
