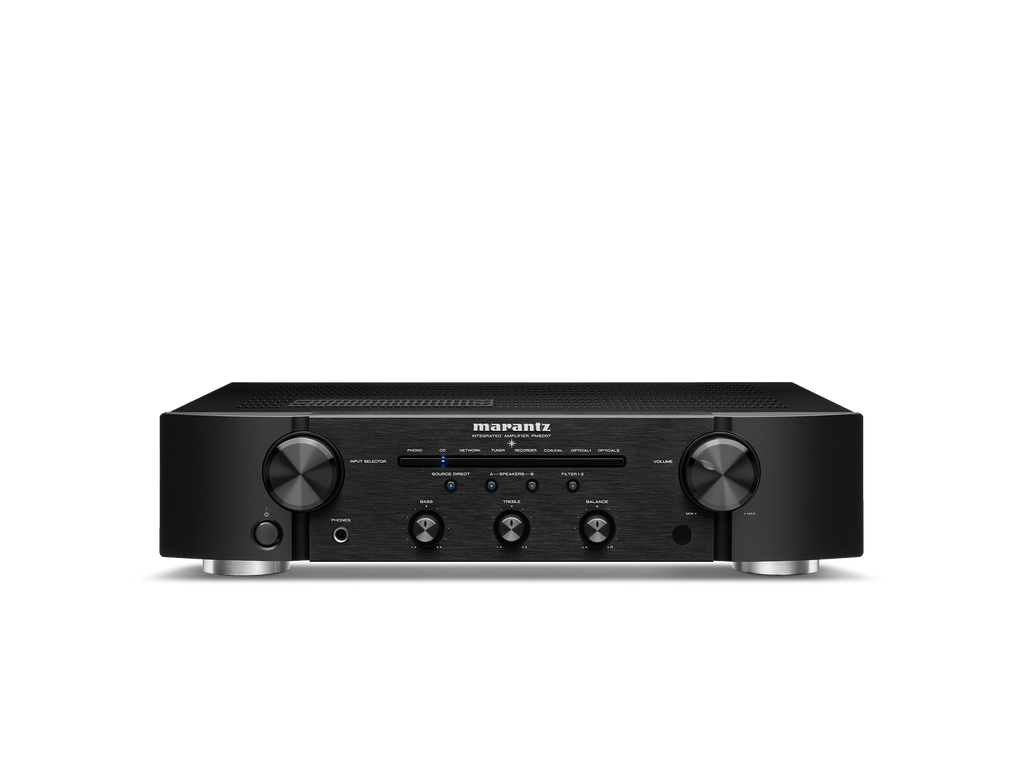

INTEGRATED AMPLIFIER WITH DIGITAL CONNECTIVITY
Featuring an upgraded, high-quality DAC, digital inputs and a newly revamped built-in phono equalizer, the Marantz PM6007 integrated amplifier features ample connectivity and creates a realistic listening experience for the most musical sound.
 |
 |
| A World Of Marantz Awaits The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience. |
Meticulously And Masterfully Tuned During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance. |
 |
 |
| Wide Range Of Connectivity Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analog inputs, one coaxial input and two optical digital inputs. |
An Updated Audio Experience The newly updated, high-quality DAC AK4490 offers a cleaner sound for your enjoyment. |
 |
Current Feedback Amplifier The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007's amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances. |
|
Reference Quality D/A Conversion For Digital Input The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types. |
 |
| Channels | 2 |
| Current Feedback Topology | Yes |
| Full balanced circuitry architecture | No |
| Double Mono Power Amp construction | No |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | Yes / No / No |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| USB-B PCM sample rate | No |
| DAC chip | AK4490 |
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| Ground isolator for DAC Mode operation | No |
| Tuner: FM / AM | No |
| Bluetooth / aptX / NFC | No |
| Streaming audio from PC | No |
| Wi-Fi / Wired LAN | No |
| Internet radio | No |
| AirPlay 2 Audio Streaming | No |
| Roon Tested | No |
| Spotify Connect* / Tidal* / Deezer* / others * | No |
| Amazon Prime Music* / Pandora* | No |
| HEOS Multiroom and Streaming | No |
| Voice control using Alexa | No |
| Voice Control - Google Assist / Apple Siri | No |
| Voice Control - Microphone built-in | No |
| DSD-Audio network streaming | No |
| Lossy formats: MP3 / WMA / AAC | No |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | No |
| Gapless Playback | No |
| Remote APP: iDevice / Android | No |
| Analog Mode | No |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | No |
| Aluminium extrusion heat sink | Yes |
| Copper Plated Chassis | No |
| Tri Tone Control (Bass / Mid / Treble) | No |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Marantz Musical Digital Filtering | Yes |
| Linear Drive Power Supply | Yes |
| Liniear volume control | Yes |
| BI-AMP and Multichannel option | No |
| Shottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | No / No |
| System block shielding: Copper / metal / none | No / No / Yes |
| Double Layer Bottom Plate | No |
| Low noise OLED display | No |
| Low noise LCD display | No |
| Source Direct | Yes |
| Power Amp direct | No |
| 5mm aluminium top plate | No |
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Phono Input: MM / MC | Yes / No |
| Audio Outputs | 1 |
| Balanced In / Out | No / No |
| Pre-out / Main-in | subwoofer / No |
| Power Amp Direct IN | No |
| HDMI: inputs / outputs | No |
| Gold Plated Cinch | Yes |
| Speaker A / B | Yes |
| Speaker Terminals | Metal (Gold) Screw |
| Number of terminals | 4 |
| D-Bus | Yes |
| Floating Control Bus (3.5 mm mono jack x 2) | No |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | No |
| Power Output (8 / 4 Ohm RMS) | 45 W / 60 W |
| Frequency response | 10 Hz - 70 kHz |
| Total Harmonic Distortion | 0.08% |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.2 mV / 47 kOhm |
| Input Sensitivity: MC | No |
| Signal to Noise Ratio: MM/MC | 83 dB / No |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Input Sensitivity: Balanced High level | No |
| Signal to Noise Ratio: High level | 102dB(2V input) |
| Input Sensitivity: Power Amp Direct IN | No |
| Signal to Noise Ratio: Power Amp Direct IN | No |
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 155 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC004MCD |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in inches | 17.3 x 14.5 x 4.1 |
| Weight in lbs. | 16.7 |
| Carton Maximum Dimensions (W x D x H) in inches | 20.3 x 7.4 x 18.4 |
| Carton Weight (inc. product) in lbs | 21.3 |
