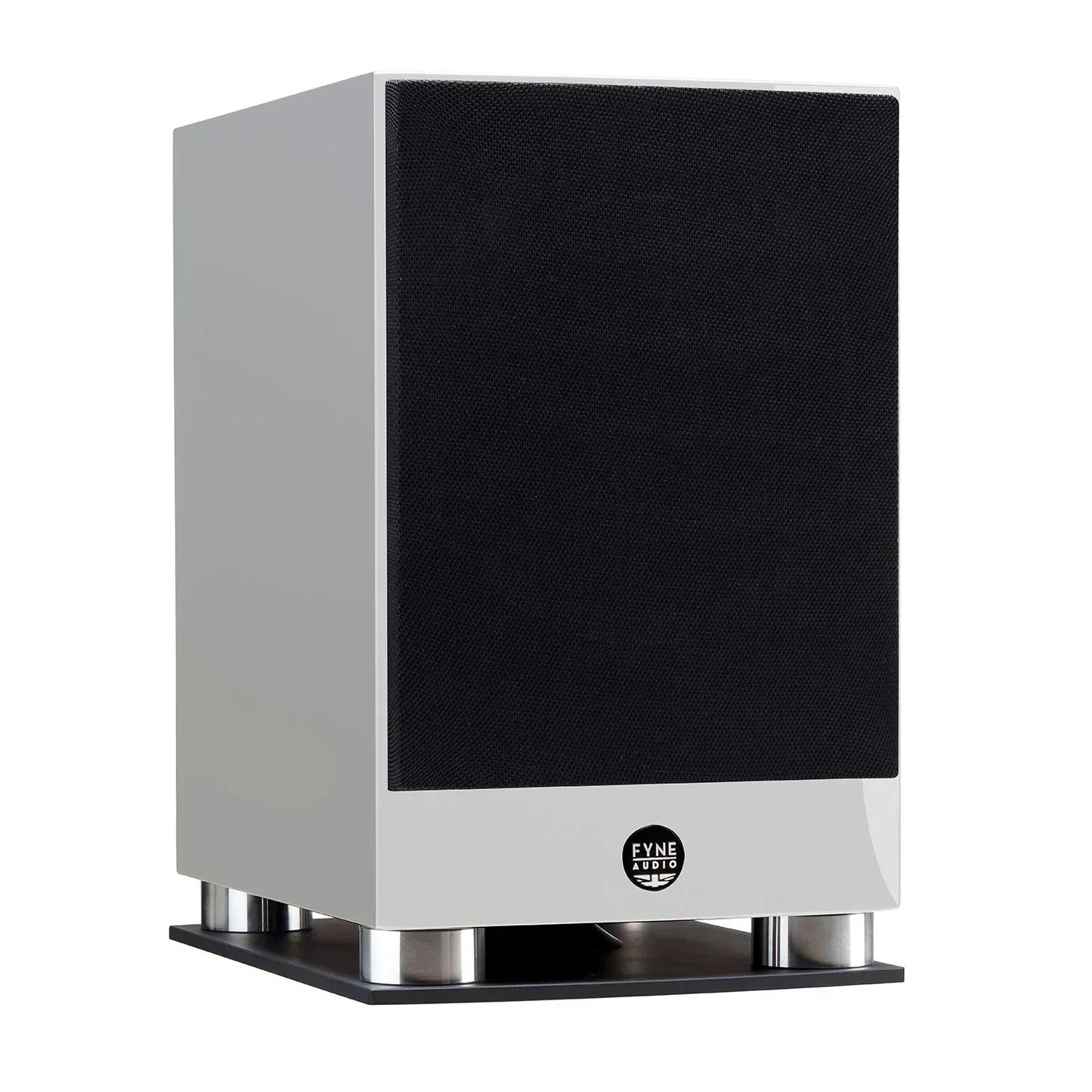

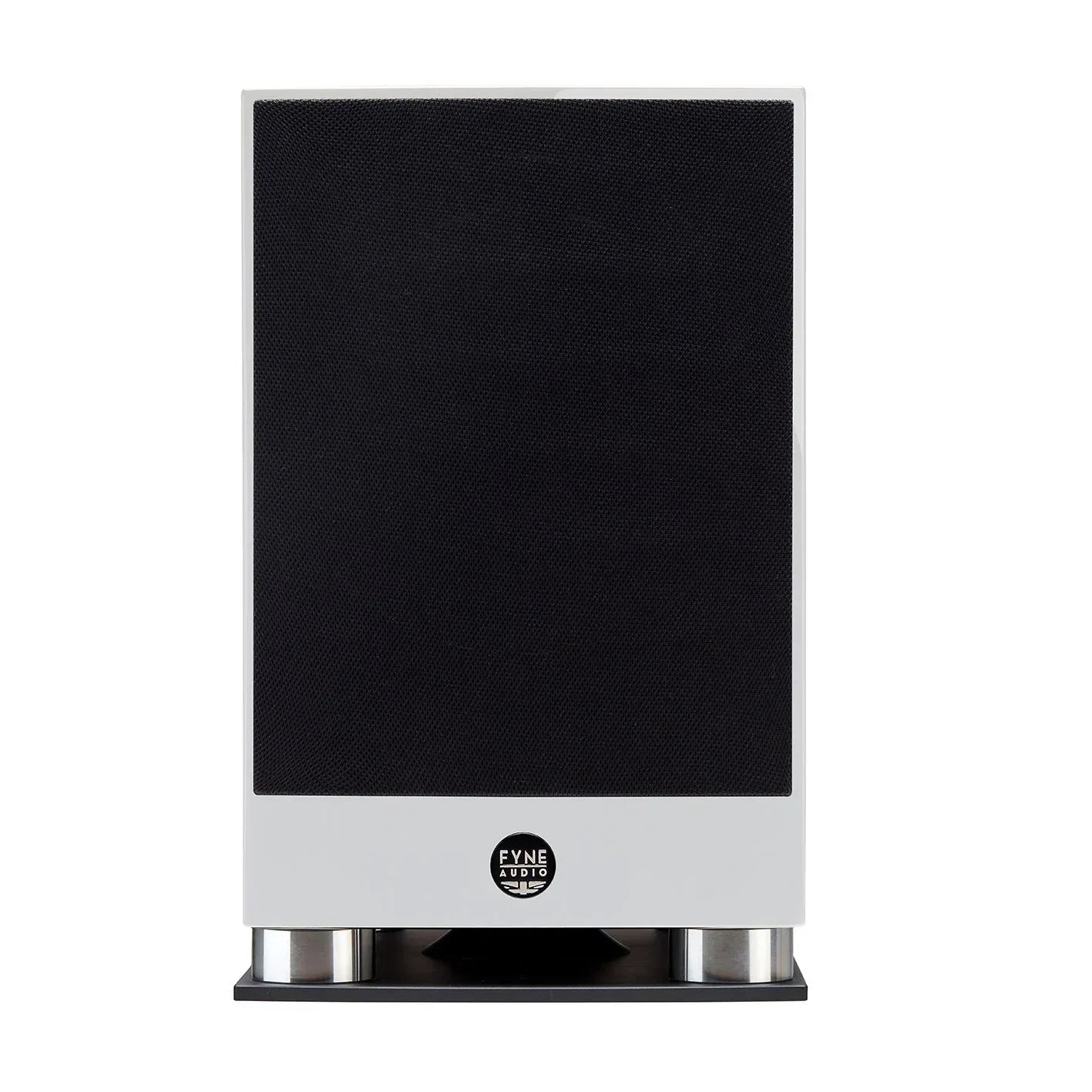

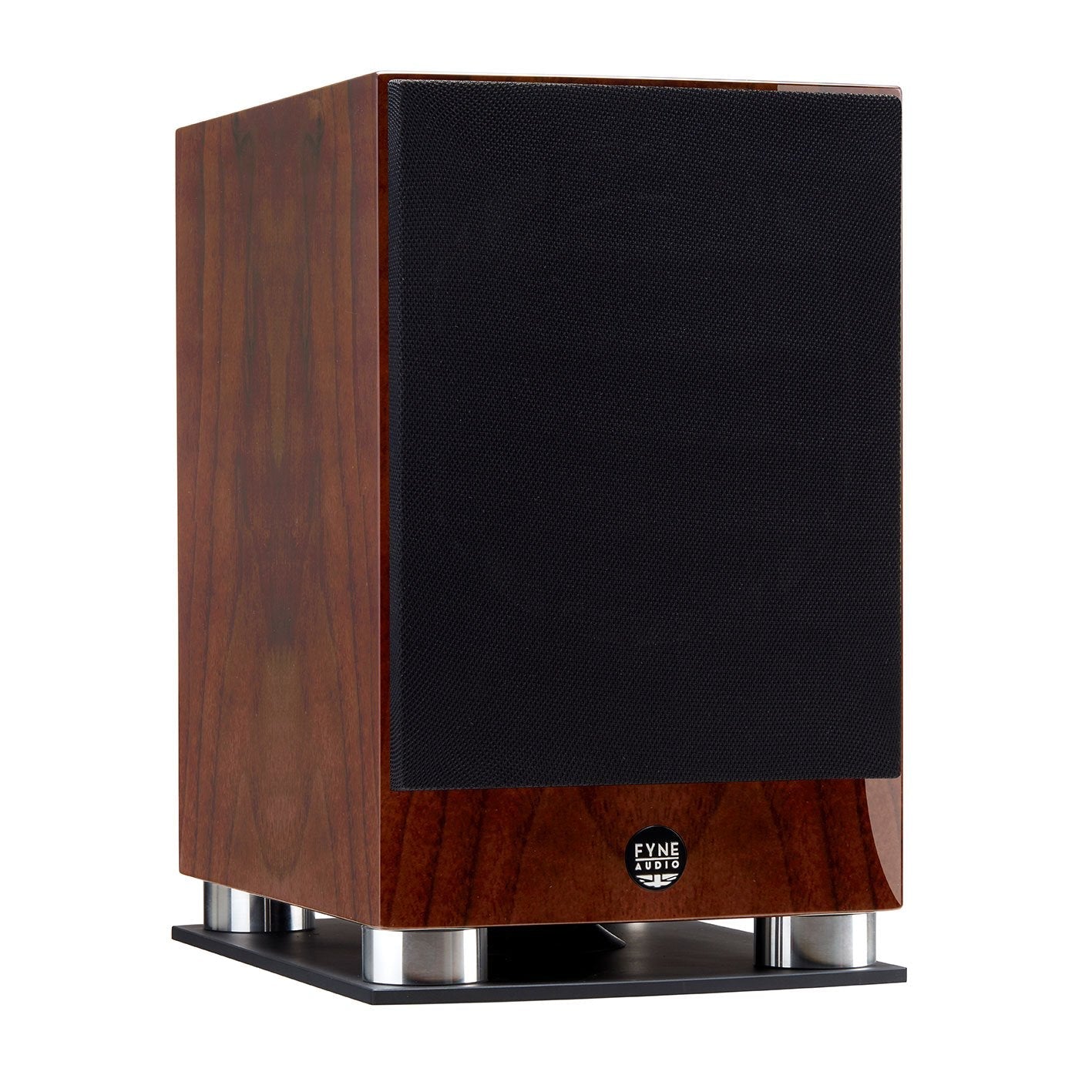

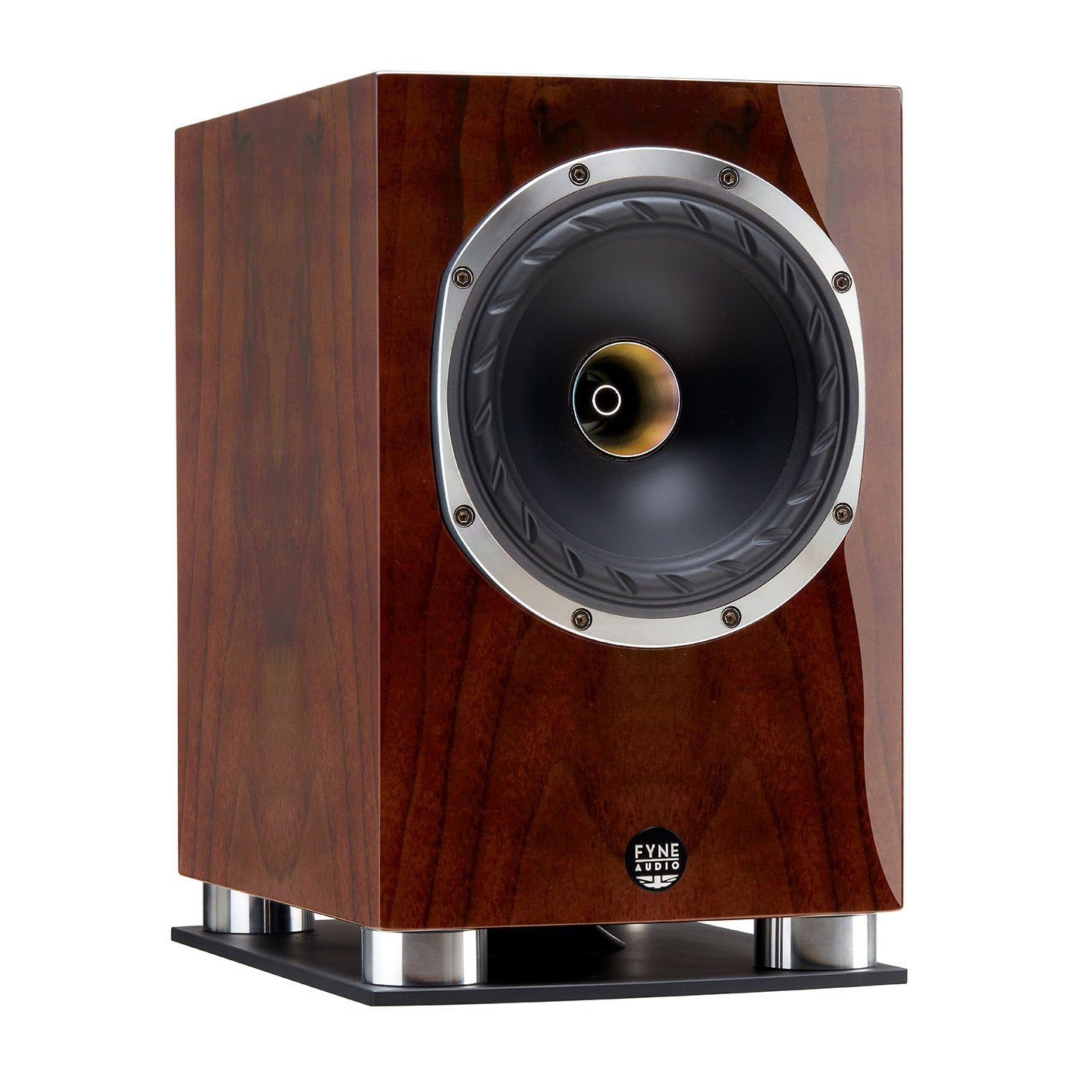

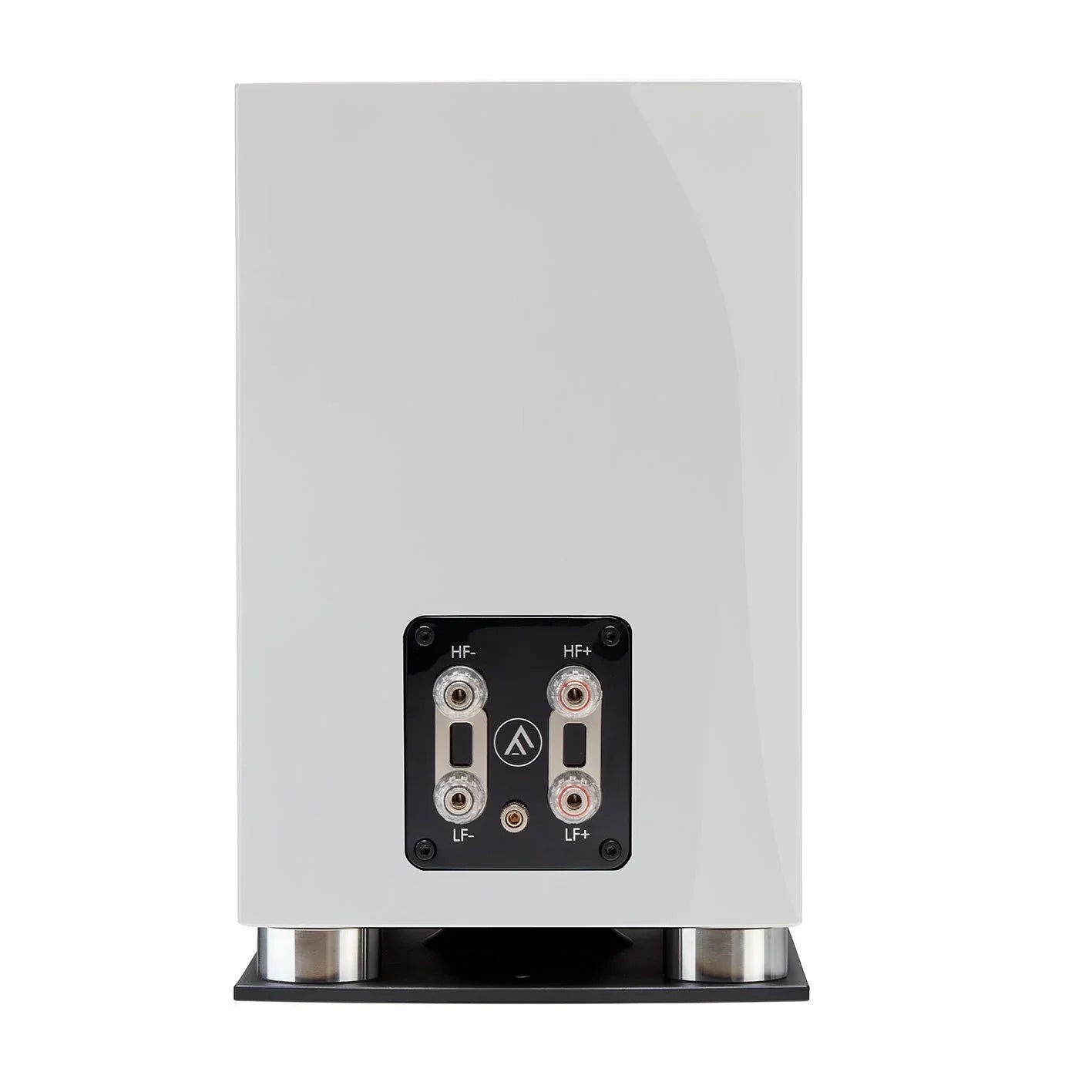

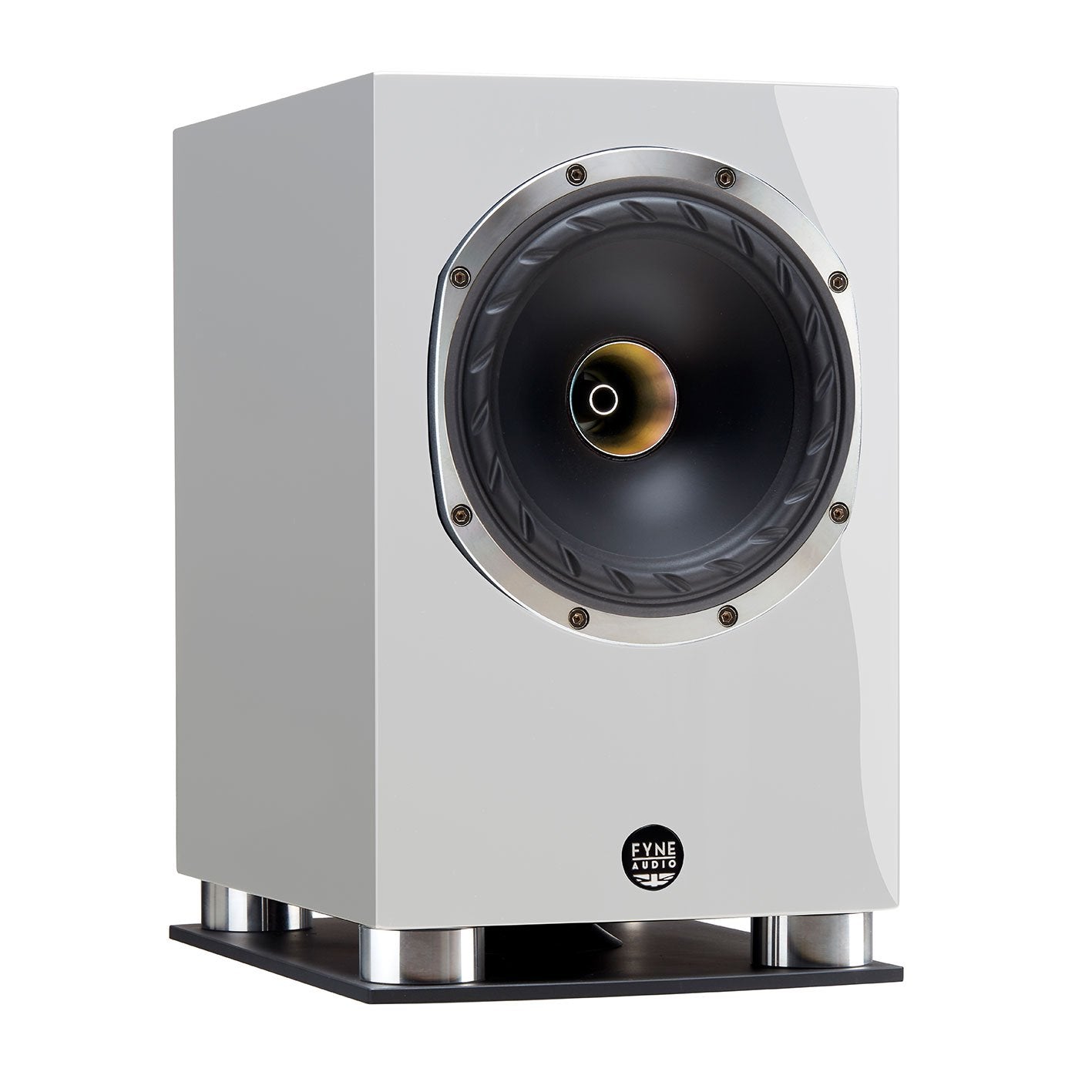

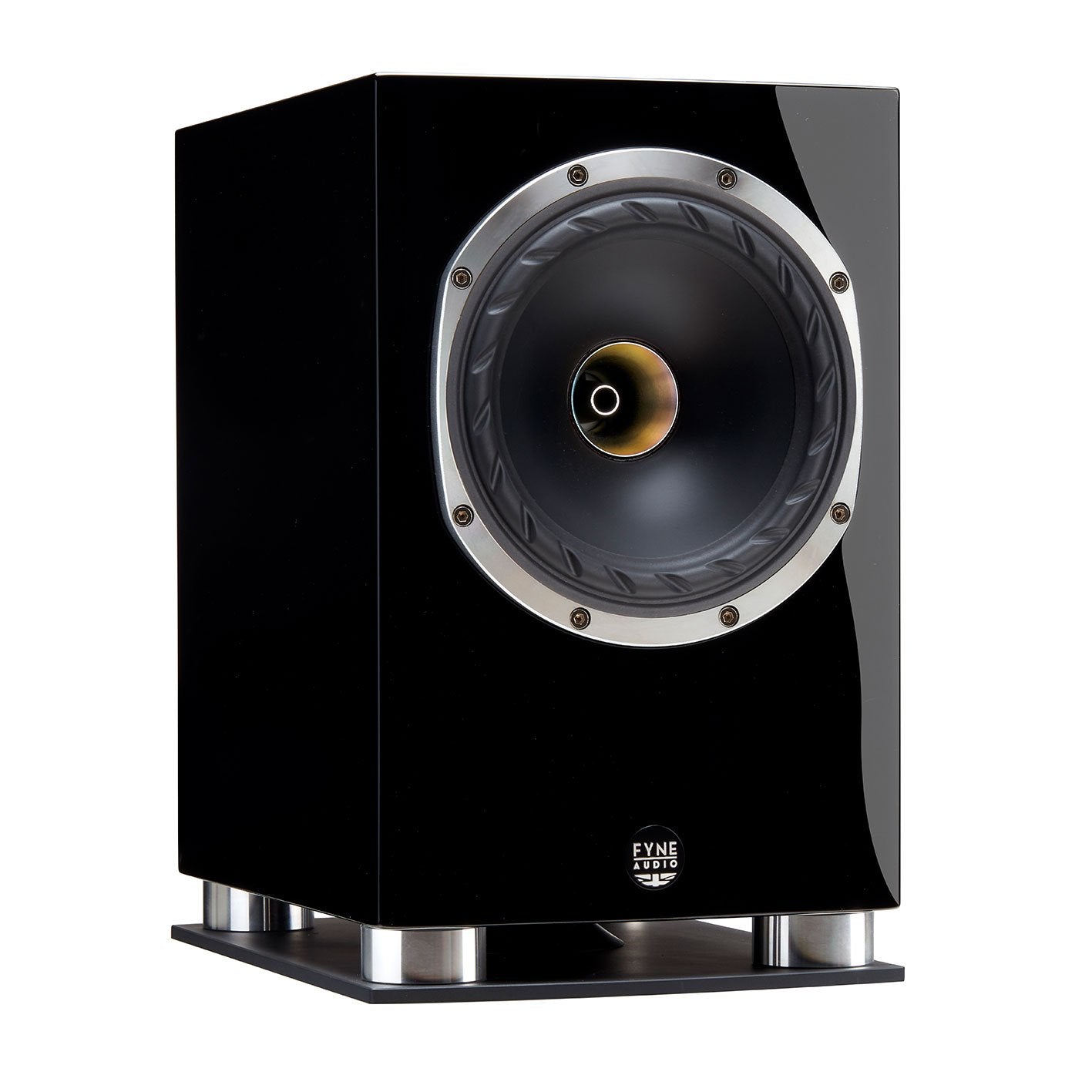

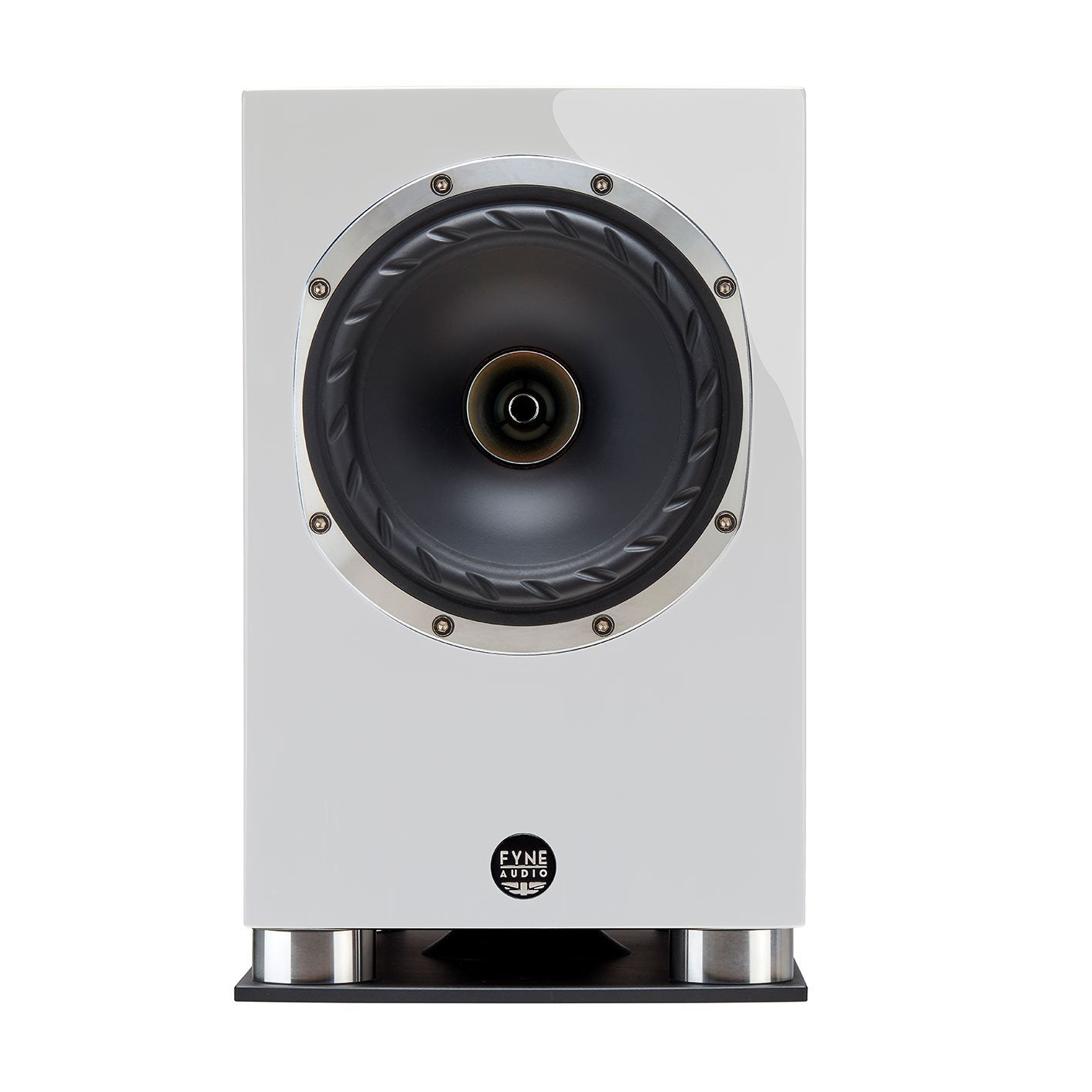

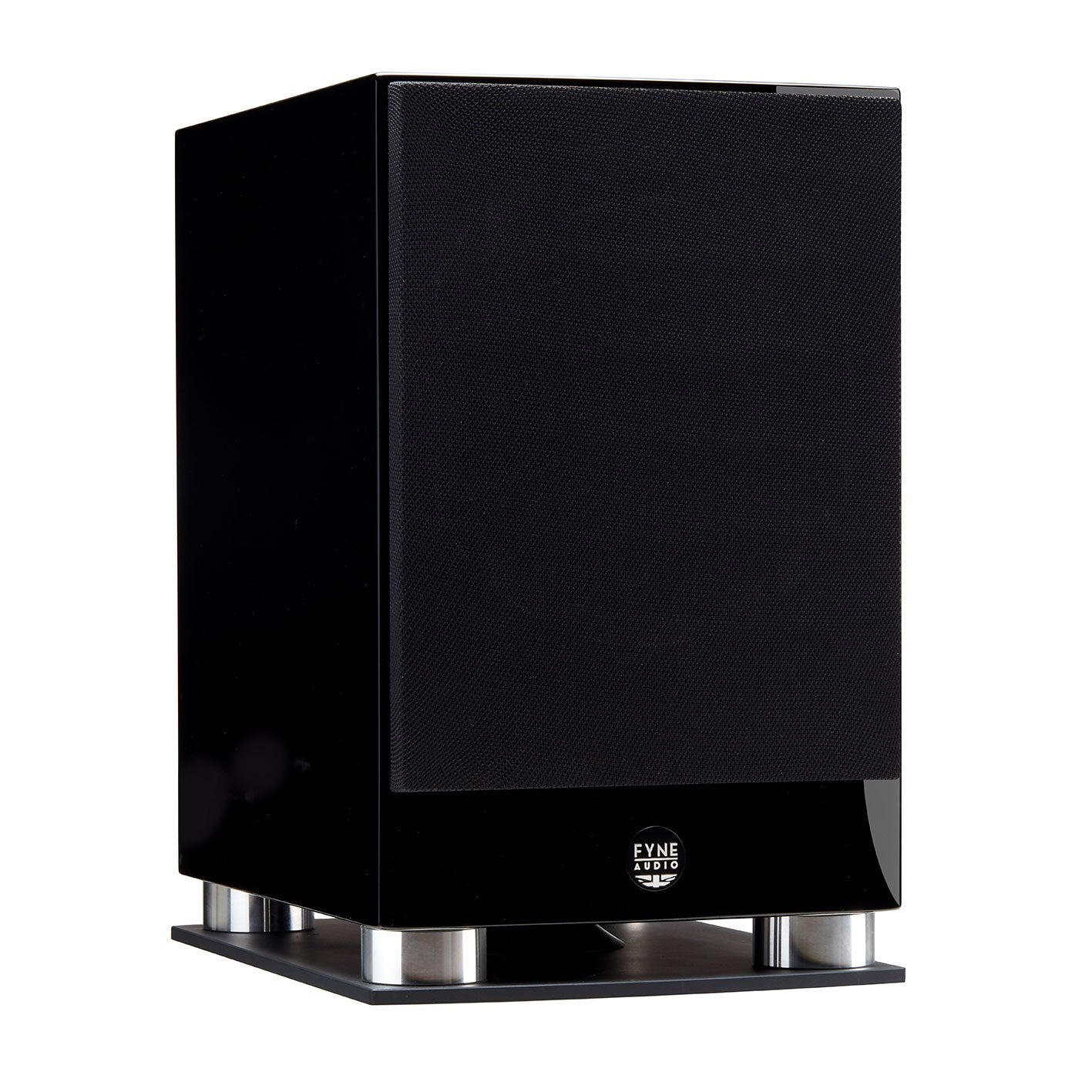

Compact and perfectly formed in the UK, the F500SP is the smallest loudspeaker in the UK built Special Production series. Heralding from the award-winning F500, the SP version adds a unique Special Production IsoFlare driver, tuned crossover and premium BassTrax port system, all derived from the prestigious F700 series. This stand-mount loudspeaker’s 6” (150mm) SP IsoFlare driver delivers full-range, point source reproduction across the entire audio spectrum for outstanding detail and class-leading imaging. The multi-fibre cone has exceptional bass reproduction thanks to its innovative twin-magnet motor system and FyneFlute roll surround that reduces cone resonances at the driver termination. The LF output is channeled through a downfiring port onto Fyne’s premium BassTrax Tractrix diffuser system, giving a smooth bass response and easy room integration. The bi-wire connection panel features a fifth terminal to ground the driver chassis and eliminate amp or cable born RF interference. With enhanced details including anodised aluminium plinth, diamond-cut aluminium driver trim and a deep gloss walnut veneer finish option, the F500SP is Fyne Audio’s most affordable premium UK-made loudspeaker.
| System Type | 2 way, downwards firing port, with BassTraxTM Tractrix diffuser* |
| Recommended amplifier power (Watt RMS) | 30 - 120 |
| Continuous power handling (Watt RMS) | 60 |
| Sensitivity (2.83 Volt @ 1m) | 90dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 42Hz - 34kHz |
| Drive unit complement | 1 x 150mm IsoFlare™ point source driver Multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system |
| Crossover frequency | 1.7kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. |
| Dimensions - HxWxD | 323 x 200 x 320mm (12.7 x 7.9 x 12.6”) |
| Weight - Each | 8.1kg (17.6lbs) |
| Finishes | Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
|
Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. |
|
