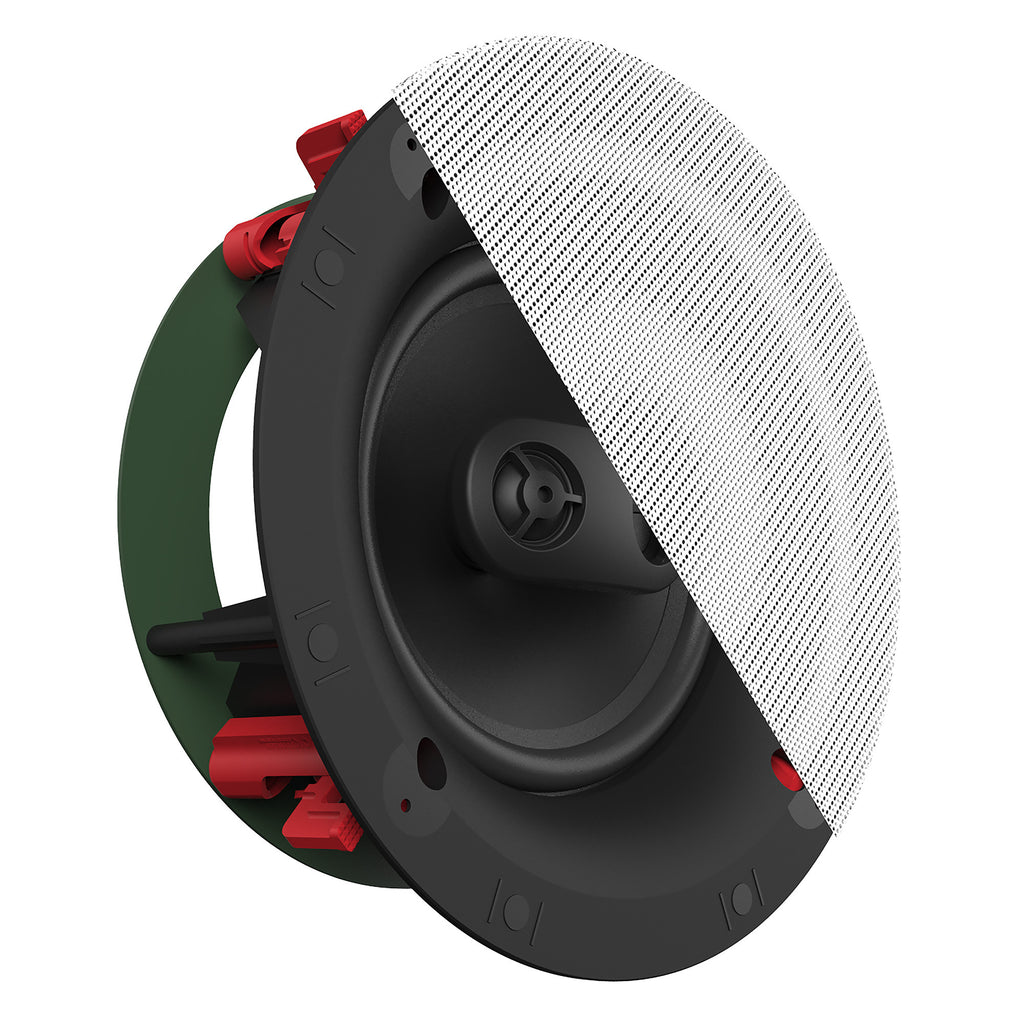

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.
| FREQUENCY RANGE | 55Hz-20KHz +/- 3dB |
| HIGH FREQUENCY DRIVER | Dual .75" (19mm) Silk Dome Tweeters |
| LOW FREQUENCY DRIVER | 8" (203.2mm) Polypropylene Woofer |
| SENSITIVITY | 94 dB @ 2.83V / 1m |
| COVERAGE ANGLE | 160° |
| POWER HANDLING | 50W RMS / 200W RMS |
| IMPEDANCE | 8 ohms compatible |
| ENCLOSURE MATERIAL/TYPE | ABS/Infinite Baffle |
| FINISH | Black Baffle/Frame, White Paintable Grille |
| PRODUCT DIMENSIONS | 10.75” W x 10.75” H x 4.37” D (273mm H x 273mm W x 111mm D) |
| MOUNTING DEPTH | 4.25” (108mm) |
| CUTOUT DIMENSIONS | 9.57” (243mm) |
| PRODUCT WEIGHT | 7.4 lbs (3.36kg) |
| INCLUDED IN BOX | Flat Paintable Magnetic Grille |
| INSTALL KIT | IK-800-C II (Sold Separately) |
| FIRE RATED ENCLOSURE | ME-800-C (Sold Separately) |
| BUILT FROM | 2017 |
| Color: | Blue, Purple, White |
| Size: | 20, 24 |
| Material: | 100% Polyester |
